| Brand Name : | JEWELLED |
| Model Number : | JLD-A09 |
| Price : | $50-$90 |
| Payment Terms : | TT /Paypal |
| Supply Ability : | 100K/month |
| Delivery Time : | 3-5 working days for sample |

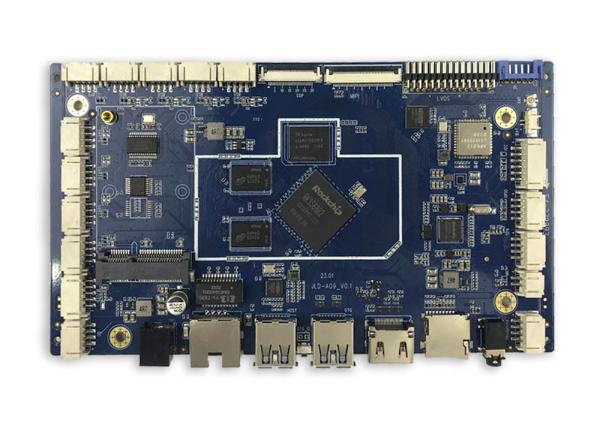

Rk3568 Development Board JLD-A09 Embedded LVDS Display Android Motherboard
The JLD-A09 Android motherboard supports 2.4G/5G WiFi, providing
users with a high-speed and stable wireless network experience.
Whether browsing the web, watching videos, or playing online games,
it can run smoothly and meet various daily network needs. At the
same time, its BT function facilitates connection with various
Bluetooth devices, enabling data transmission, device control, and
other operations, expanding the device's usage scenarios.
The JLD-A09 Android motherboard supports the Android 11 system,
which has stronger performance optimization and a richer
application ecosystem. Users can easily download and use a large
number of Android applications to meet diverse functional needs. In
addition, it also supports Ubuntu 20.04 system and supports I2C and
USB interface touch screen for JLD-A09 Android motherboard. The I2C
interface has the characteristics of simplicity and efficiency,
which can achieve stable data transmission between the touch screen
and the motherboard, ensuring precise response to touch operations.
USB interface touch screens have the advantages of strong
universality and convenient connection. Users can flexibly choose
different types of touch screens according to their actual needs,
enhancing the interactive experience of the device. Whether used in
smart terminals, industrial control, or other fields, the D6
Android motherboard, with its excellent network, system, and
touchscreen interface features, can provide users with a reliable
and convenient user experience.
Feature of JLD-A09 Android Motherboard
Support LVDS, MIPI, EDP, HDMI interface display and i2c touch panel,
Rich Interaction: USB 2.0 USB3.0, com port, HDMI, MIPI EDP LVDS, Mini PCIE interface, etc.
Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT
Strong anti-electromagnetic interference and Electromagnetic compatibility.
Compitable for major mainstream manufacturers' POS application software, stable performance.
Interface Photos of JLD-A09 Android Motherboard
Main Parameters of JLD-A09 Android Motherboard
Processor | RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU | 1TOPS |
Memory | 2G/4G/8G DDR4 optional |
EMMC | 16G-128G optional |
Display | Support LVDS,EDP,MIPI,HDMI |
Audio Output | Stereo, support Dolby sound effect |
Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
Ethernet | 10/100/1000M |
Wi-Fi | 2.4G/5G WiFi BT |
OS | Android 11/ Ubuntu 20.04/Debian 10 |
| TP | I2C /USB interface TP |
Memory card type | TF-CARD |
USB Interface | Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce) |
Serial port | 7 in total, optional types, TTL (1-7 pcs), RS232 (0-6 pcs), RS485(0-2 pcs) |
RTC | Support power-off clock memory, automatic power on and off |
Camera | USB camera |
PCB Size | 146mm*102mm*1.6mm |
Power supply | DC12V-24V input |
| Temperature | -20°- 80℃ |
Application of JLD-A09 Android Motherboard
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your
equipment. Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
