JLD-P02 Android Motherboard High Cost Performance For Self-Service Terminal
Feature of JLD-P02 Android Motherboard for Self-Service Terminal
Stable system and software support
Operating System: Supports Android 10 system, with good stability
and compatibility, capable of running various self-service terminal
applications developed based on the Android system, providing users
with a familiar and convenient operating interface.
Customized development: Customized development can be carried out
according to the needs of different industries and users to meet
various special business and functional requirements, such as
customizing exclusive business processing interfaces and processes
in bank self-service terminals.
Compact size and low-power design
Compact size: The motherboard size is 125mm * 90mm, with a small
volume that can be easily installed in various self-service
terminal devices, saving space and suitable for self-service
terminal scenarios with limited space, such as small self-service
vending machines.
Low power consumption: Adopting a low-power design, while ensuring
performance, it reduces the energy consumption of self-service
terminals, saves energy costs, and extends the service life of
equipment, especially suitable for self-service terminal devices
that require long-term operation.

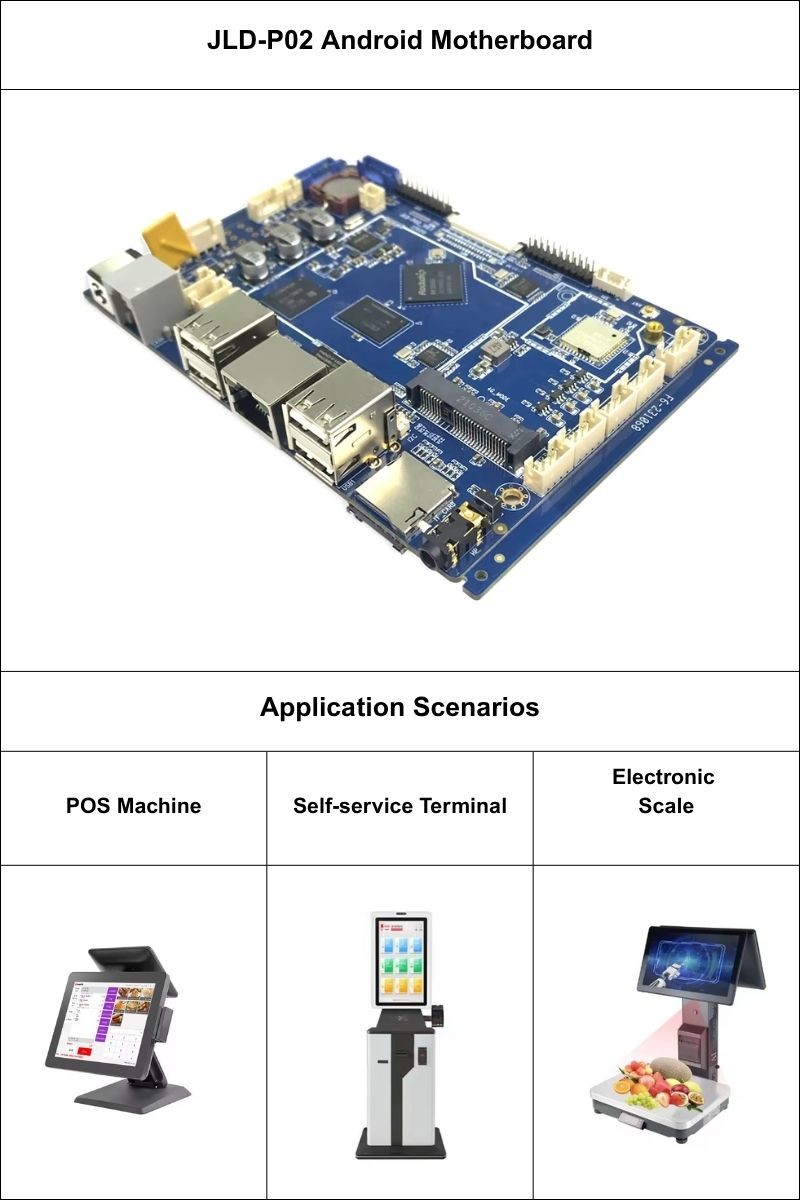

Product interface photos of JLD-P02 Android Motherboard for Self-Service Terminal
Hardware parameters of JLD-P02 Android Motherboard for Self-Service Terminal
CPU | RK3566 Quad-core 64-bit Cortex-A55 processor, maximum frequency 1.8GHz |
| GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU | 1TOPS |
Memory | 2G/4G/8G DDR4 optional |
EMMC | 16G-128G optional |
Display | Support LVDS,EDP,MIPI |
Audio Output | Stereo, support Dolby sound effect |
Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
Ethernet | 10/100M |
Wi-Fi | 2.4G/5G WiFi BT |
OS | Android 11/ Ubuntu 20.04/Debian 10 |
| TP | I2C /USB interface TP |
Memory card type | TF-CARD |
USB Interface | Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce) |
Serial port | 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs) |
RTC | Support power-off clock memory, automatic power on and off |
Camera | USB camera |
PCB Size | 125mm*90mm*1.6mm |
Power supply | DC12V-24V input |
| Temperature | -20°- 80℃ |
Applications
POS machine, electronic scale, self-service terminal
Service and Support
Flexible customization: Provide LOGO customization, booting logo,
animation, hardware interface adjustment, system cutting, LOGO
customization and other services.
Development support: Open SDK and technical documents, support Android application development and system optimization.
Quality assurance: Electromagnetic compatibility and electrostatic protection design, provide 1 year warranty and lifetime technical support.
