| Brand Name : | JEWELLED |
| Model Number : | JLD-A09 |
| Price : | $50-$90 |
| Payment Terms : | TT /Paypal |
| Supply Ability : | 100K/month |
| Delivery Time : | 3-5 working days for sample |
Custom Printed Circuit Android Embedded Boards Linux Board Pcba Manufacture Development Board Lvds JLD-A09 Gigabit Ethernet
Features
| CPU | RK3568 quad-core 2.0GHZ | GPU | Mali-G52 |
| NPU | IT TOPS | OS | Android 11/Linux/Ubuntu/Debian |
| Memory | DDR4 2GB/4GB/8GB | EMMC | 16GB/32GB/64GB/128GB |
| Touch Screen | I2C interface/USB | Display Interface | LVDS,EDP,MIPI,HDMI |
| Serial port | 5 ( RS232 and TTL optional) 1 TTL | USB 3.0 | support 2 |
| Highlight | Android embedded board, Linux board, Android development board | ||
JLD-A09 PCB size 158mm*95mm*1.5mm Android embedded board is a versatile ARM Android Board designed for various embedded applications.
Serial Ports: Equipped with multiple serial ports to support various communication needs, including TTL/RS232 (1-5 Pcs), and RS485 (0-2 Pcs), ensuring seamless connectivity with external devices and peripherals.
This Android embedded board offers robust performance and flexibility to meet the demands of modern computing needs, self-sevice kiosk, digital signage, pos system etc.
Display: Support LVDS, MIPI, EDP, and HDMI Display, ensuring compatibility with a wide range of display devices for seamless integration and enhanced visual experience.
Ram: Available in 2GB, 4GB, and 8GB configurations, providing ample memory for smooth multitasking and efficient operation of applications on the Android Motherboard.
Rom: Choose from 16GB, 32GB, 64GB, 128GB, or 256GB of storage capacity to store your data, applications, and multimedia content with ease on the Android Motherboard.
Feature
Support LVDS, MIPI, EDP, HDMI interface display and i2c touch panel,
Rich Interaction: USB 2.0 USB3.0, com port, HDMI, MIPI EDP LVDS, Mini PCIE interface, etc.
Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT
Strong anti-electromagnetic interference and Electromagnetic compatibility.
Compitable for major mainstream manufacturers' POS application software, stable performance.

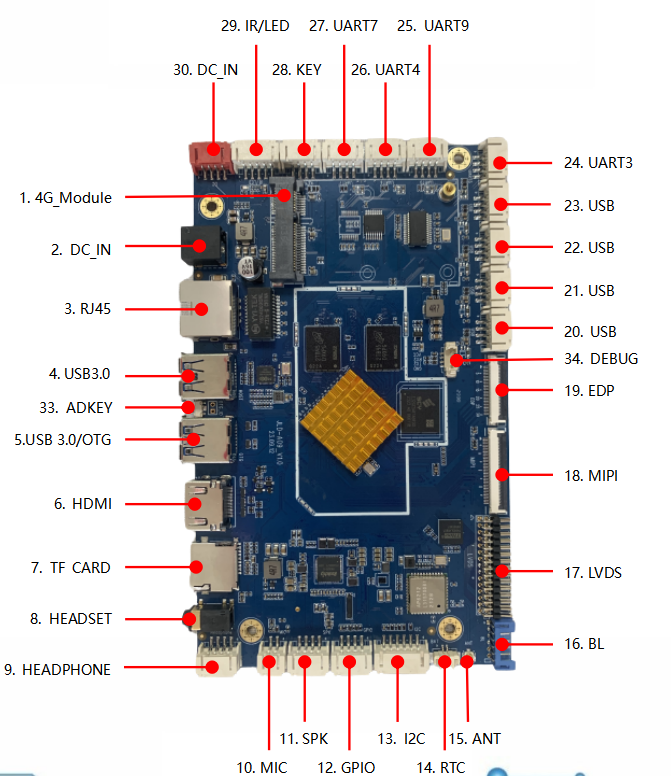

Product interface photos
Main parameters
Processor | RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU | 1TOPS |
Memory | 2G/4G/8G DDR4 optional |
EMMC | 16G-128G optional |
Display | Support LVDS,EDP,MIPI,HDMI |
Audio Output | Stereo, support Dolby sound effect |
Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
Ethernet | 10/100/1000M |
Wi-Fi | 2.4G/5G WiFi BT |
OS | Android 11/ Ubuntu 20.04/Debian 10 |
| TP | I2C /USB interface TP |
Memory card type | TF-CARD |
USB Interface | Built-in USB 2.0 sockets (4 pcs), external USB 2.0 (2 pcs) 3.0 (1 pce) OTG (1 pce) |
Serial port | 7 in total, optional types, TTL (1-7 pcs), RS232 (0-6 pcs), RS485(0-2 pcs) |
RTC | Support power-off clock memory, automatic power on and off |
Camera | USB camera |
PCB Size | 146mm*102mm*1.6mm |
Power supply | DC12V-24V input |
| Temperature | -20°- 80℃ |
Apply:
self-service terminal, vending machine, queue system, etc
Product Superiority: stable performance rich interface.
1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your
equipment. Customized development PCBA are available well.
