| Brand Name : | JEWELLED |
| Model Number : | JLD-A09 |
| Price : | $45-$80 |
| Payment Terms : | TT /Paypal |
| Supply Ability : | 100K/month |
| Delivery Time : | 3-5 working days for sample |
Description
JLD-A09 adopts RK3568 processor, which is a high-performance, low-power quad-core application processor chip, built-in a variety of powerful embedded hardware engines, provides excellent performance for high-end applications, supports almost all formats H.264 4k@60fps decoding, supports H.265 4k@60fps decoding, also supports H.264/H.265 1080p@60fps encoding, and high-quality JPEG encoding/decoding.
At the same time, RK3568 has a built-in 3D GPU, which is fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.0. A dedicated 2D hardware engine will maximize display performance and provide a smooth operating experience.
The embedded NPU supports mixed INT8/INT16 operations. In addition, with its strong compatibility, network models based on a series of frameworks such as TensorFlow/MXNet/PyTorch/Caffe can be easily converted. RK3568 has high-performance memory interfaces (DDR3/DDR3L/DDR4/LPDDR3/LPDDR4/LPDDR4X), which can provide the memory bandwidth required in high-performance scenarios.
Feature
Support LVDS, MIPI, EDP interface display and i2c touch panel,
Rich Interaction: USB, HDMI, com port, headphone port, etc.
Network interfaces: Ethernet, Wireless WIFI 2.4G & 5G for option, BT
Strong anti-electromagnetic interference and Electromagnetic
compatibility.
Gigabit ethernet

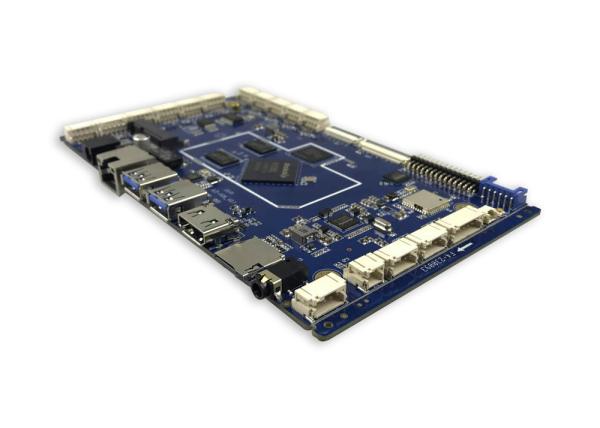

Product interface photos
Main parameters
CPU | RK3568 highest frequency up to 2.0GHZ |
| GPU | ARM G52 2EE |
| NPU | 1TOPS |
Memory | 2G/4G/8G DDR4 optional |
EMMC | 16G-128G optional |
Display | Support LVDS,EDP,MIPI, HDMI |
Audio Output | Stereo, support Dolby sound effect |
Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
Ethernet | 10/100M/1000M |
Wi-Fi | 2.4G/5G WiFi BT |
OS | Android 11/ Ubuntu 20.04/Debian 10 |
| TP | I2C /USB interface TP |
Memory card type | TF-CARD |
USB Interface | Built-in USB 2.0 socket(4 pcs)extraposition USB 3.0 HOST(1pcs)extraposition OTG(1pcs) |
Serial port | Five in all,Variety optional,TTL(1-5pcs)RS232(0-4pcs)RS485(0-2pcs) |
RTC | Support power-off clock memory, automatic power on and off |
Camera | MIPI/USB |
PCB Size | 158mm*95mm*1.5mm |
Power supply | DC12V 3A input |
| Temperature | -20°- 80℃ |
Apply:
In door /outdoor Self-Service, Vending Machine, Energy Saving Touch Screen, Pay Station Kiosk, Self Service Payment Terminal, Pos terminals, Self-service kiosks, etc.
Certificate
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
After-sales service
Good quality control, 1-3 years warranty.
Immediate technical support.
We are your best digital signage solution provider !
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your
equipment. Customized development PCBA are available well.
|
|
