Cost Effective Motherboard System On Module RK3566 Quad Core 64-bit Cortex-A55 Single Board Computer For Embedded Applications JLD-P02

Description

JLD-P02 The RK3568 motherboard single board computer is a robust, flexible solution for embedded systems requiring reliability, diverse connectivity, and edge AI capabilities. Its industrial-grade features make it ideal for automation, signage, and IoT, while the NPU and OS options cater to developers exploring lightweight AI or multimedia applications. However, high-performance tasks may require more powerful hardware.

Core Advantages

Powerful performance, smooth operation

Processor: Equipped with RK3566 quad-core Cortex-A55 architecture processor, main frequency 1.8GHz, supports AI acceleration (1T NPU), can efficiently handle multi-tasking scenarios, such as payment transactions, code scanning recognition, data synchronization, etc.

Memory and storage: Supports 2GB/4GB/8GB LPDDR4 memory + 32GB/64GB/128GB eMMC storage (expandable), meeting the needs of POS system for fast response and massive data storage.

Operating system: native Android 11 system, compatible with mainstream POS applications, supports OTA upgrades, and ensures system security and function iteration.

Rich interfaces and strong scalability

Multi-screen display: Supports HDMI, LVDS/MIPI interfaces, and can be connected to the main screen, customer display screen or advertising screen.

Peripheral compatibility: Integrated 8x USB 2.0, 3x UART serial port, GPIO, I2C, SPI and other interfaces, cash box interface reserved specifically for POS machineseasily connect to peripherals such as code scanning guns, printers, cash boxes, card readers, etc.

Network connection: supports Gigabit Ethernet, dual-band Wi-Fi 2.4G/5G, Bluetooth 5.0, 4G module (optional), adapting to wired/wireless hybrid deployment environment.

Industrial-grade reliability

Wide temperature design: operating temperature range -20℃~80℃, adapting to high and low temperature complex environment.

Stable power supply: supports DC 12V power supply, with overvoltage and overcurrent protection, ensuring 24-hour uninterrupted operation.

Compact structure: small onboard size (customizable design), easy to integrate into various POS terminal devices.

Typical application scenarios
Smart POS cash register

Supports multiple payment methods such as QR code payment (Alipay/WeChat), NFC, bank card swiping, etc., and is compatible with thermal receipt printing and electronic invoice functions.

Multi-task parallel processing of cashier, member management, inventory query and other operations, smooth and no lag.

Self-service terminal

Applied to supermarket self-service checkout, catering self-service ordering machine, through high-definition screen interaction and real-time linkage with the background system.

Industry customized equipment

Supports secondary development, can be adapted to logistics handheld terminals, government self-service machines and other scenarios.

Spec Details:

Feature

• Support LVDS, MIPI, EDP, HDMI interface display and i2c touch panel,

• Rich Interaction: USB, com port, RJ11, Cash drawer interface, Mini PCIE interface, etc.

• Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT

• Strong anti-electromagnetic interference and Electromagnetic compatibility.

• Target Applications

  Industrial Automation: Control systems using serial ports, rugged design.

  Digital Signage/Kiosks: Multi-display support, touchscreen compatibility.

  Edge AI: NPU for lightweight inference (smart cameras, retail analytics).

  Network Appliances: Firewalls/NAS with Gigabit Ethernet and USB 3.0.

  IoT Gateways: Wi-Fi/BT connectivity for sensor data aggregation.

  Multimedia Devices: Android OS for media playback, Dolby audio.

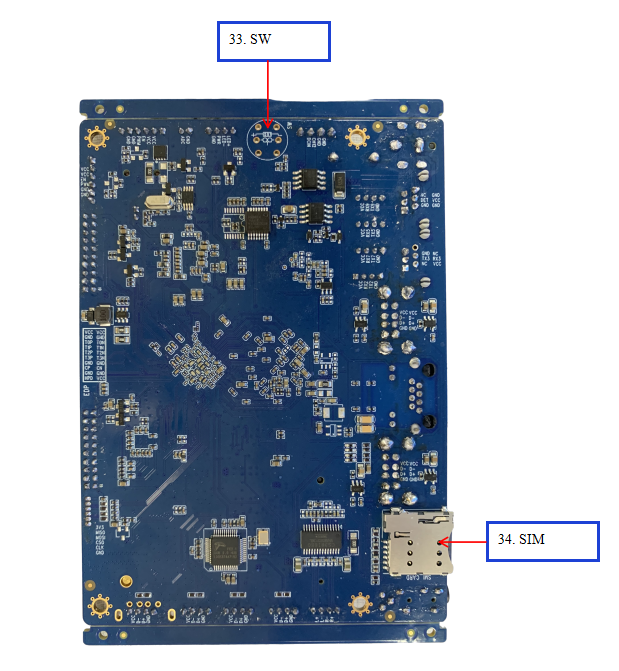

Product interface photos

Hardware parameters

Service and Support
Flexible customization: Provide LOGO customization, booting logo, animation, hardware interface adjustment, system cutting, LOGO customization and other services.

Development support: Open SDK and technical documents, support Android application development and system optimization.

Quality assurance: Electromagnetic compatibility and electrostatic protection design, provide 1 year warranty and lifetime technical support.

1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;

FAQ

Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your equipment. Customized development PCBA are available well.
