| Brand Name : | JEWELLED |
| Model Number : | JLD-F02 |
| Price : | $50-$90 |
| Payment Terms : | TT /Paypal |
| Supply Ability : | 100K/month |
| Delivery Time : | 3-5 working days for sample |
Summary
JLD-F02 RK3288 Android Embedded board adopts Rackchip3288's new generation of RK quad core ARM CORTEX-A17 core processor and ARM Mali-T764 graphics processor (GPU), integrating HD video engine and advanced security technology. Quad core ARM CORTEX-A17 CPU maximum frequency 1.8GHZ.
High performance Mali-T764 GPU, support TE, ASTC, AFBC memory compression technology, compatible with each big mainstream brand game 3d UI, etc..
The JLD-F02 RK3288 RK3288 Android Embedded board is an ideal choice for face recognition turnstile systems due to its powerful processing capabilities, high-resolution display support, robust connectivity options, and durable design. Its compact size, efficient power management, and wide operating temperature range make it a reliable and versatile solution for both indoor and outdoor applications. With its advanced features and flexibility, the JLD-F02 RK3288 motherboard ensures optimal performance and user satisfaction in modern access control systems.
This product has some features
1. Main IC :RK3288 Maximum Frequency 1.8GHZ
2. Memory:2G/4G DDR3
3. Flash:8G ~64G EMMC (highest support 128G )
4.Video output :support LVDS, EDP and MIPI video output (highest resolution 3840X2160).
5. Audio output: stereo, supporting Dolby sound
6. Network :Support 10/100/1000 MHZ LAN and wireless WIFI 2.4 or 5G.
7. Operating System:ANDROID 5.1.1/ANDROID 7.1
8. PCB size:113mmX80mmX1.6mm
9. Power supply mode:DC 12V /3A input
10. Touch panel:support multi-point capacitive touch screen.
11. Memory CARD types: support TF CARD --- highest 32G disk.
12. USB Interface:Can support USB HOST/OTG
13. RTC:support clock memory when it is power off, support automatic restart and shut down.
14. Adaptive temperature:-20 - 80 centigrade.
15. Relay: Support normally on/off
16. UART: RS232/TTL/RS485

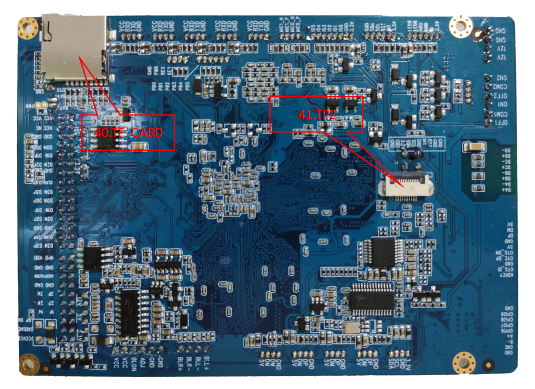

Product interface photos
Main parameters
1 | HDMI | HDMI output |
2 | OTG option | Choose OTG output |
3 | RTC_BATTERY | RTC battery |
4 | MIPI_CAMERA_IR | MIPI camera IR interface |
5 | LVDS_OUT | LVDS output |
6 | MIPI_CAMERA | MIPI camera input |
7 | EDP_OUT | EDP output |
8 | MIPI_LCD | MIPI LCD output |
9 | LED indicator output | LED indicator output |
10 | BL_LCD | Display backlight power supply and control Backlight bright interface |
11 | SPK output | Speaker output |
12.13.14.15 | USB HOST | USB HOST2.0 port |
16 | I2C | I2C interface |
17 | Wiegand interface/RS485 | Wiegand interface/RS485 |
18 | USB HOST/USB OTG | USB HOST2.0和 OTG port |
19 | RJ45 | Wired 1000MHZ network |
20 | Relay output | Relay output |
21 | UART | Serial port TTL |
22 | DC_IN | DC power input |
23 | ADC/IR/LED | ADC/IR/LED indicator interface |
24 | TP1 | Capacitive touch panel |
25 | GPIO | GPIO 1*6 interface |
26 | MIC_IN | Microphone input |
29 | UART | Serial port TTL |
27.28.30.31 | UART | Serial port TTL/RS232 |
32 | EDP_VCC | EDP power selection |
33 | LVDS_VCC | LVDS power selection |
34 | PWR/ADC/RST | Power key/ADC key/Reset key |
35 | RST_KEY | Reset key |
36 | MCU_IO | MCU IO port |
37 | ADC_KEY | ADC key |
38 | Tamper KEY | Tamper key |
39 | WIFI/BT | WIFI/BT antenna port 2.4G 5G. |
40 | TF_CARD | TF card socket |
41 | TP2 | FPC TP interface |
Our motherboard has a wide range of application scenarios. The application scenario of the motherboard depends on the function requirements of our customers.
Certificate
1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your
equipment. Customized development PCBA are available well.
|
|
