| Brand Name : | JEWELLED |
| Model Number : | JLD-P03 |
| Price : | $40-$60 |
| Payment Terms : | TT /Paypal |
| Supply Ability : | 100K/month |
| Delivery Time : | 3-5 working days for sample |
Summary
This platform bridges the gap between cost, performance, and industrial reliability, making it a strong choice for businesses prioritizing durability and edge AI in embedded deployments. JLD-P03 is a motherboard used in commercial POS machines and touch screen POS machines. It uses the RK3568 processor. It is a high-performance, low-power consumption quad-core application processor chip with a variety of powerful built-in functions. The embedded hardware engine provides excellent performance for high-end applications, supporting almost all formats of H.264 4k@60fps decoding, H.265 4k@60fps decoding, and H.264/H.265 1080p@60fps encoding , and high-quality JPEG encoding/decoding RK3566 Built-in 3 D GPU, fully compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.0. A dedicated 2D hardware engine will maximize display performance and provide a smooth operating experience.
| CPU | RK3568 quad-core 2.0GHZ | GPU | Mali-G52 |
| NPU | IT TOPS | OS | Android 11/Linux/Ubuntu/Debian |
| Memory | DDR4 2GB/4GB/8GB | EMMC | 16GB/32GB/64GB/128GB |
| Touch Screen | I2C interface/USB | Display Interface | LVDS,EDP,MIPI |
| Serial port | 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs | Cash drawer interface | RJ11 6P6C |
| Highlight | POS motherboard Android Motherboard RK3568 Motherboard Pos System
Motherboard | ||
Versatile I/O: 5x serial ports + USB 3.0 + MIPI/LVDS – Connects legacy and modern peripherals.
Edge AI Ready: 1 TOPS NPU for on-device inference (e.g., inventory tracking, predictive maintenance).
Rugged Design: Survives extreme temperatures, ideal for outdoor/industrial use.
Cost-Effective: Scalable RAM/storage options reduce upfront costs for low- to mid-tier projects.
Dual OS Flexibility: Android for app ecosystems, Ubuntu for custom Linux solutions.
Feature
Support LVDS, MIPI, EDP,interface display and i2c touch panel,
Rich Interaction: USB, com port, RJ11, Cash drawer interface, Mini PCIE interface, etc.
Network interfaces: Ethernet gigabit, Wireless WIFI 2.4G & 5G for option, BT
Strong anti-electromagnetic interference and Electromagnetic compatibility.
Compitable for major mainstream manufacturers' POS application
software, stable performance.
Product interface photos
Main parameters
CPU | RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency 2.0GHz |
| GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU | 1TOPS |
Memory | 2G/4G/8G DDR4 optional |
EMMC | 16G-128G optional |
Display | Support LVDS,EDP,MIPI |
Audio Output | Stereo, support Dolby sound effect |
Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker interface |
Ethernet | 10/100/1000M |
Wi-Fi | 2.4G/5G WiFi BT |
OS | Android 11/ Ubuntu 20.04/Debian 10 |
| TP | I2C /USB interface TP |
Memory card type | TF-CARD |
USB Interface | Built-in USB 2.0 sockets (4 pcs), external USB 3.0 (1 pce) 2.0 (2 pcs) |
Serial port | 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs) |
RTC | Support power-off clock memory, automatic power on and off |
Camera | USB camera |
PCB Size | 125mm*90mm*1.6mm |
Power supply | DC12V3A input |
| Temperature | -20°- 80℃ |

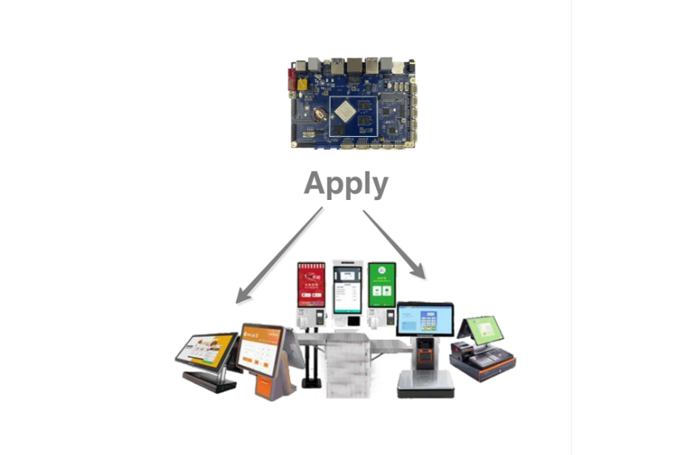

Apply:
POS machine, electronic scale, self-service terminal
Product Superiority: Suitable for dual screen POS machine,can do a variety of screen combinations,various interfaces supporting POS
1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;
FAQ
Q1. Can I have a sample order for PCBA motherboard?
A: Yes, we welcome sample order to test and check quality with your
equipment. Customized development PCBA are available well.
