Description
21.5inch Touch Screen Monitor Touch All in One PC Capacitive Touch Screen Lcd monitor for Digital Sinage
Summary
The JLD-TPC-215 is a versatile and compact 21.5-inch touchscreen all-in-one device designed for a wide range of applications. It features a sleek metal plate construction, available in black or white, and is lightweight at less than 5.2 kg. The device supports multiple installation modes, including embedded, wall-mounted, and desktop setups, making it highly adaptable to various environments. The products can be widely used in banks and other financial institutions (business inquiries in the bank), product exhibition halls (introduction, exhibits display), automobile 4S (car model display), government agencies (public information release, government affairs openness), education industry and other industries
This all-in-one device is ideal for applications in retail, hospitality, education, and industrial settings, offering a combination of durability, flexibility, and high performance. Let me know if you need further details or customization!
Feature
--Support I3/I5/I7,Celeron,J1900/N5095/5105,RK3568/RK3588
--Support SO-DIMM, support M-SATA,M2 Sata
--Standard 21.5inch HD display, capacitive touch screen, support dual display
--Standard with 4USB, 1LAN interface, can be extended 2USB and multi-specification COM interface
--Support1*Mini-PCIE (for WiFi)
--Support VESA bracket installation, wall mounted, desktop installation

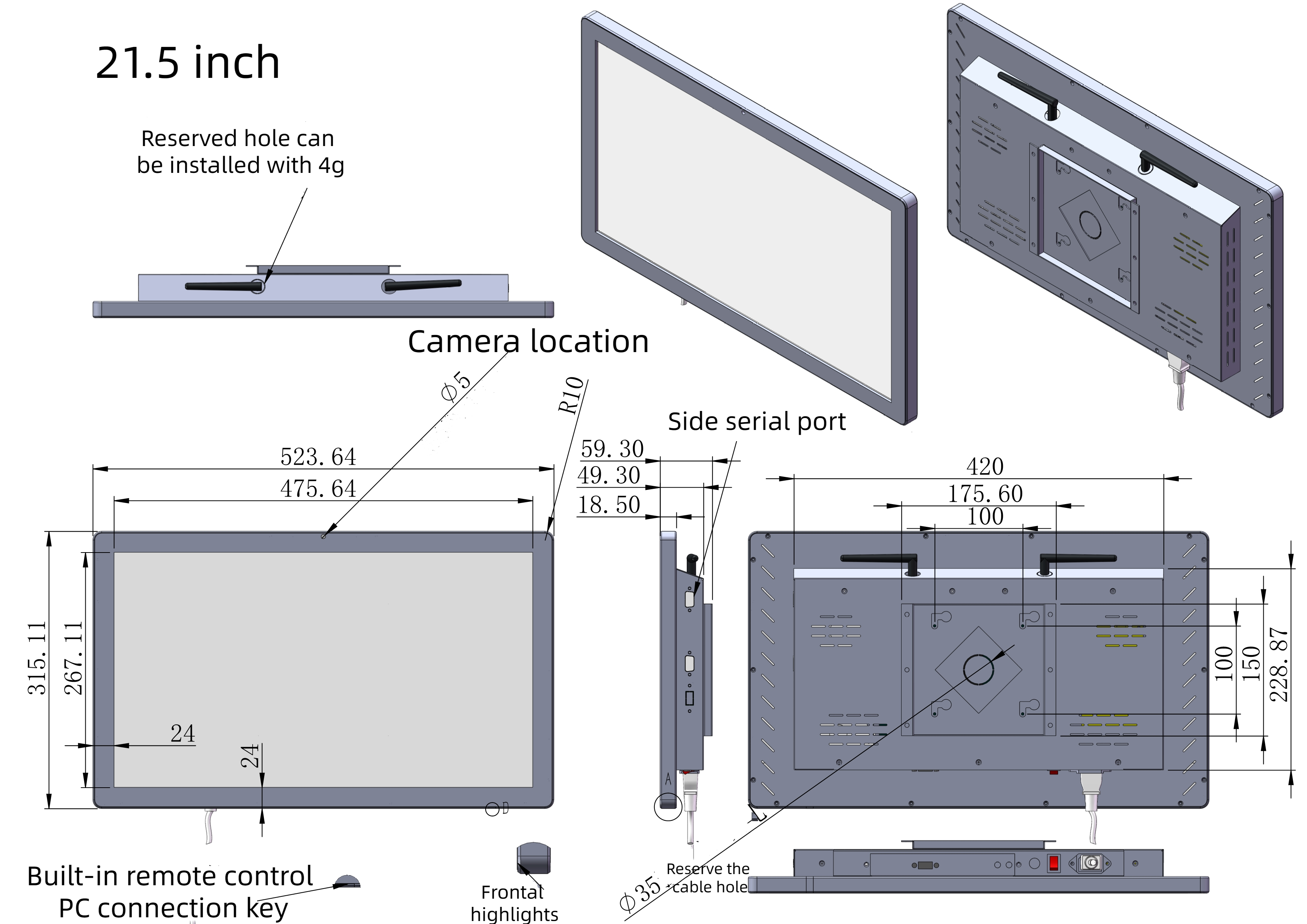

Product Size
Using the same kind of capacitive screen touch positioning technology with the IPAD, within 5ms speed response, far beyond the hunmanbody limit reaction speed 25ms, giving you an impeccable pleasure
Main parameters
| Model | JLD-TPC-215 | Pilot lamp | Power indicator light | Overall size | 523.64*315.11*59.3mm |
| Display | 21.5inch | Megaphone | Support | Display size | 475.64*267.11mm |
| TP type | Capacitive | Heat dissipation | Fanless | Color | Black/White |
| Resolution | 1920*1080 | Power consumption | ＜45W,Android lower | Material | Metal plate |
| Brightness | 300cd/㎡(500/700 optional) | Installation mode | embedded, wall-mounted, desktop | Weight | < 5.2kg |
| Viewing angle | 89°/89°/89°/89° (R/L/U/D) | Camera | 200W(500W/800W/1200W/2K/4K optional) | Certification | CE |
| Operating temperature | '-20℃-60℃ | ESD protection | ±4kV(contact),±8kV(air) | Warranty | One year |
| Storage temperature | '-25℃-70℃ | Accessories | Power adapter, wifi antenna, user manual | ||
Hardware and software(X86)
| Processor | Intel Bay Trail J1900(4 cores 4 threads) | Intel Gemini lake/N5095/N5105(4 cores 4 threads) |
| CPU frequency | 2.0GHZ,highest :2.41GHz | 2.0GHZ,highest:2.9GHz |
| OS | Windows 7 / Windows 10 / Linux Ubuntu 20.04 | Windows 7 / Windows 10 / Linux Ubuntu 20.04 |
| BIOS | AMI BIOS | AMI BIOS |
| Chipset | Intel® SOC | Intel® SOC |
| Image display | Intel ® HD Graphics integrated graphics | Intel ® UHD Graphics 600 |
| Ethernet | Realtek RTL8106E,10/100/1000Mbs self-adaptation | RLT8111H/8111G,10/100/1000Mbs self-adaptation |
| Sound effect | Realtek ALC662HD,support 8Ω5W | Realtek ALC269HD,support 8Ω5W |
| WiFi | Support WiFi 2.4G | Support WiFi 2.4G |
| Memory | Single DDR3L 1333MHz Max 8G | Single DDR4 2133/2400MHz Max 8G |
| Hard disk | M-SATA 128G | M-SATA 128G |
| Function | Bluetooth,4G,watchdog function | Bluetooth,4G,watchdog function |
| Front I/O | 1* switch(with LED); 2 * antenna; 2*COM(RS232or RS485 optional) | 1* switch(with LED); 2 * antenna; 2*COM(RS232or RS485 optional) |
Rear I/O | 1 * DC IN interface 1 * HDMI interface 1 * VGA interface 2* USB3.0 interface 2 * USB2.0 interface 1 * LAN interface (Expandable to 2*LAN) 1* LINE-OUT interface 1* MIC-IN interface 2 * COM232 interface 2 * USB2.0 interface 1* M3 Earth bolt | 1 * DC IN interface 1 * HDMI interface 1 * VGA interface 2* USB3.0 interface 2 * USB2.0 interface 1 * LAN interface (Expandable to 2*LAN) 1* LINE-OUT interface 1* MIC-IN interface 2* COM232 interface 2 * USB2.0 interface 1* M3 Earth bolt |
| Power supply | DC12V | DC 12V |
| Power adapter | Input : 100-240V 50/60Hz ； output : 12.0V/5.0A | Input : 100-240V 50/60Hz ； output : 12.0V/5.0A |
Hardware and software(Arm)
| Processor | RK3568 quad core 64 bit Cortex-A55 | RK3588 quad core Cortex-A76+quad core Cortex-A55 |
| CPU frequency | Highest 2.0GHZ | Highest 2.4GHz |
| OS | Android11/Ubuntu20.04/Debain10 | Android 13/Ubuntu/Debain10 |
| GPU | ARM G52 2EE | ARM Mali-G610 MC4 |
| NPU | 1.0 TopS NPU Computility | 6 TopS NPU Computility |
| Ethernet | Support 10/1001000Mbps | Support 10/1001000Mbps |
| WIFI/BT | 2.4G/5.8G wireless WIFI;BT4.2/5.0 | 2.4G/5.8G wireless WIFI;BT4.2/5.0 |
| Sound effect | Stereo,support 8R8W | Stereo,support 8R8W |
| Memory | 2G/4G/8G LPDDR4/DDR4 optional(standard2G) | 2G/4G/8G LPDDR4 optional |
| Flash Memory | EMMC16G/32G/64G/128G optional | EMMC16G/32G/64G/128G optional |
| Function | 4G,watchdog | 4G,watchdog |
| Front I/O | 1* switch(with LED); 2 * antenna; 2*COM(RS232or RS485 optional) | 1* switch(with LED); 2 * antenna; 2*COM(RS232or RS485 optional) |
| Rear I/O | 1* DCIN interface 1 * LAN interface 2 * USB3.0 interface 1 * HDMI interface 1 * TF卡 interface 1 * LINE-OUT interface 2 * RS232 interface 2 * USB2.0 interface 1* M3 Earth bolt | 1 * DC IN interface 1 * HDMI-IN interface 1 * HDMI-OUT interface 2 * USB2.0 interface 1* USB3.0 interface 1* Type-C interface 2 * LAN interface 1 * TF卡 interface 1 * LINE-OUT interface 2 * COM232 interface 2 * USB2.0 interface 1* M3 Earth bolt |
| Power supply | DC 12V~24V | DC 12V~24V |
| Power adapter | Input : 100-240V 50/60Hz ； output : 12.0V/5.0A | Input : 100-240V 50/60Hz ； output : 12.0V/5.0A |
Multiple Installation
Size optional
| Size | Resolution | Screen Ratio | Touch type |
| 18.5inch | 1920*1080 | 16:9 | Capacitive |
21.5inch | 1920*1080 | 16:9 | Capacitive |
| 23.8inch | 1920*1080 | 16:9 | Capacitive |
| 27inch | 1920*1080 | 16:9 | Capacitive |
| 32inch | 1920*1080 | 16:9 | Capacitive |
| 43inch | 1920*1080 | 16:9 | Capacitive |
| 55inch | 1920*1080 | 16:9 | Capacitive |
Application:
Medical equipment
Self-service
Medical testing
Workshop equipment
CNC cabinet
Vending machine
Kiosk information platform
Monitoring center
Certificate
1.One-stop Solution:
We provide PCB design, manufacturing & assembly one-stop service.
2.Liability:
All products are 100% tested for reliabilities before shipment.
3.Quick-turn Service:
Quickest delivery 48hrs, quick response.
4.Full Qualification:
UL,ISO9001 Certified.
5.Professional Support, Advanced Technique:
100% free professional technical support
6.Flexibility:
No MOQ,both QTA (quick turn around) production and normal production can meet your leadtime.
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
4. Good quality control, 1-3 years warranty.
FAQ
Q1. Can I have a sample order for touch screen monitor?
A: Yes, we welcome sample order to test and check quality with your
equipment. Customized development PCBA are available well.
|
|
